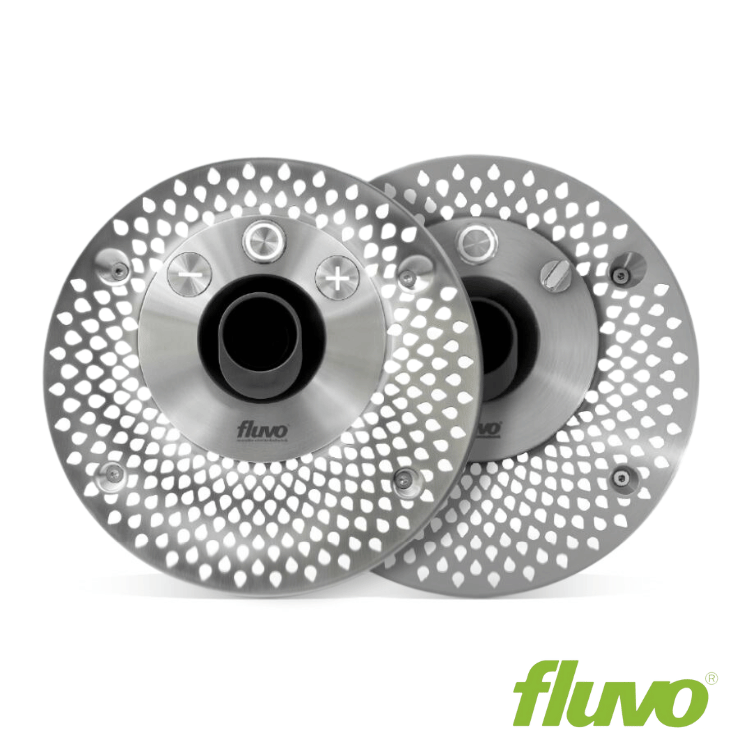

Fluvo Xanas Counter Current System is an award-winning unit that offers an unbeatable swimming experience. With variable speeds and pressure, you can create the perfect streamflow for your swimming level and needs. Not only does the Xanas offer outstanding functionality it is also visually appealing with its extra flat design and integrated suction through a drop-shaped grill for maximum flow.

Counter current systems became indispensable in modern pool areas. Swimming without the need to turn when you reach the end of the pool. The Xanas counter current system offers fitness and fun for the whole family. The strength of the counter current system can be adjusted, so everyone can find their ideal rhythm.

Select your Fluvo Xanas counter current system from various designs and materials. The control can be done either through pressure sensitive buttons or rotary knobs. A special highlight is the Xanas Q-Line with its square design. The square counter current system option the Xanas Q-Line is made of high-quality stainless-steel and blends harmoniously into the cubic design language of modern pool facilities and can be combined with other swimming pool water features of the Q-Line series.

The Fluvo Xanas counter current system received the Plus X Award, the world’s largest innovation award for technology, sports and lifestyle in four categories – high quality, design, ease of use and functionality.

Features:

Unique design with multiple options
Adjustable flow and air admixture
Movable nozzle
Illuminated ON/OFF switch
User-friendly operations
Single or three-phase power
Suitable for concrete / liner / one-piece pools
Integrated suction
High-efficiency IE3 motor
Salt water-resistant (not salt electrolysis systems)
Conforms with international safety standards
Compatible with myfluvo^® app

Create individual training programs

The myfluvo® training program app integration allows you to create your own swim routine, putting the control in your hands, literally! For example, you can program 10 minutes of breaststroke, followed by 8 minutes of swimming the breast crawl, and finally, 5 minutes of a relaxed dog paddle. The app will also work with compatible pool fittings like LED lights for full pool control in the palm of your hand.

Training, massage and light settings created can also be stored for different users (father, mother, child or guest).

Technical Information:

Flow rate: 42m³/h – 72m³/h
Flow Velocity: 1.75 – 2.0 m/s
Motor Power: 1.9kW – 4.0kW
Suitable for all pool types and retro-fitting
Safety and conformity with international regulations and standards

Motor Kits:

	Flow	Power
Xanas 1.5kW Pump Kit	42m³/hr	230v – Single Phase
Xanas 2.2kW Pump Kit	54m³/hr	230v – Single Phase
Xanas 1.9kW Pump Kit	48m³/hr	400v – 3 Phase
Xanas 3.0kW Pump Kit	60m³/hr	400v – 3 Phase
Xanas 4.0kW Pump Kit	72m³/hr	400v – 3 Phase

When selecting a piezo variable speed control faceplate the pump will include a frequency converter. These faceplates are only suitable for a 3-phase electrical supply.
